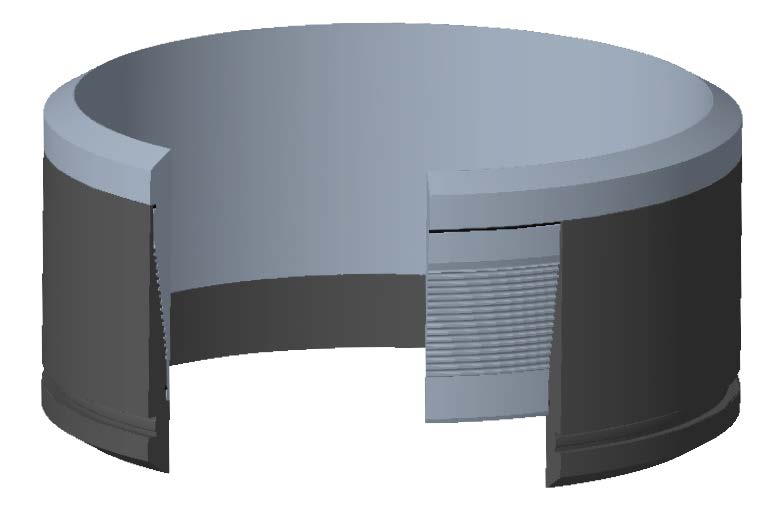

UDT Puma

UDT Puma is a threaded connector with both OD & ID flush feature suitable for use in oil wells where size restriction precludes the use of upset casing connectors.

The connector is suitable for driving applications and utilizes high strength material to enable the connection to exceed the pipe physical properties.

These connectors do not need any special tools for lowering and can be installed using conventional casing tongs.

Materials

 UDT Puma connector are typically made from high strength alloy steel (100,000 psi yield). Alternate material options are available on request.

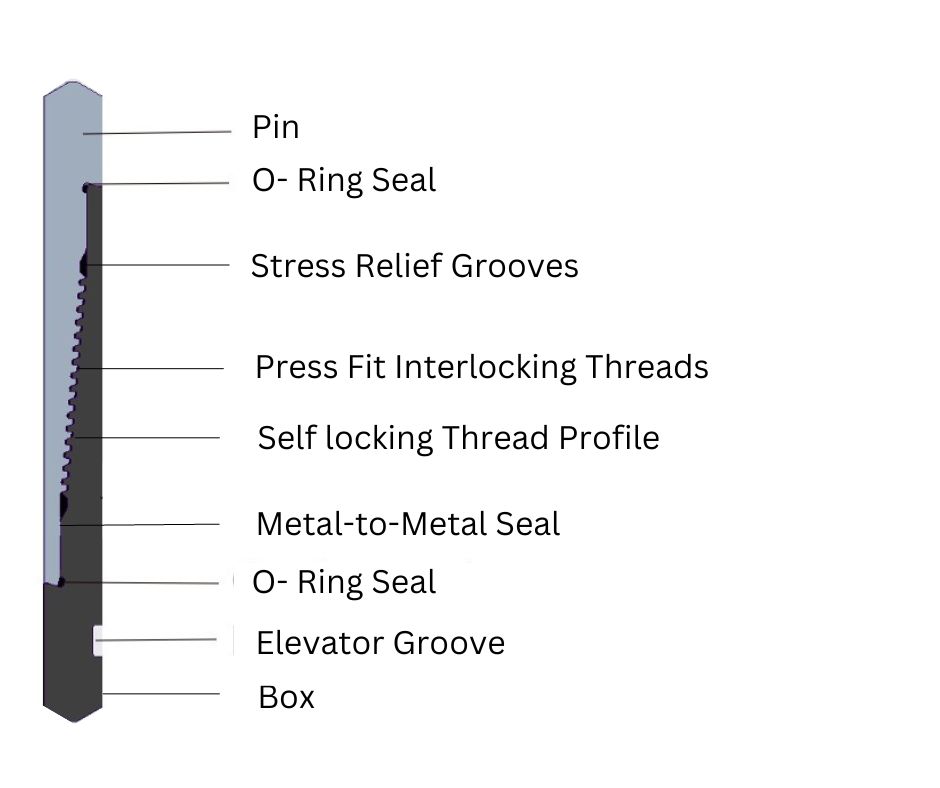

special features

  • Flush OD flush ID.
  • Suitable for piling.
  • Visual indication of make-up.
  • Elastomer o-ring seals.
  • Low torque, fast make-up.
  • Pre-loaded.

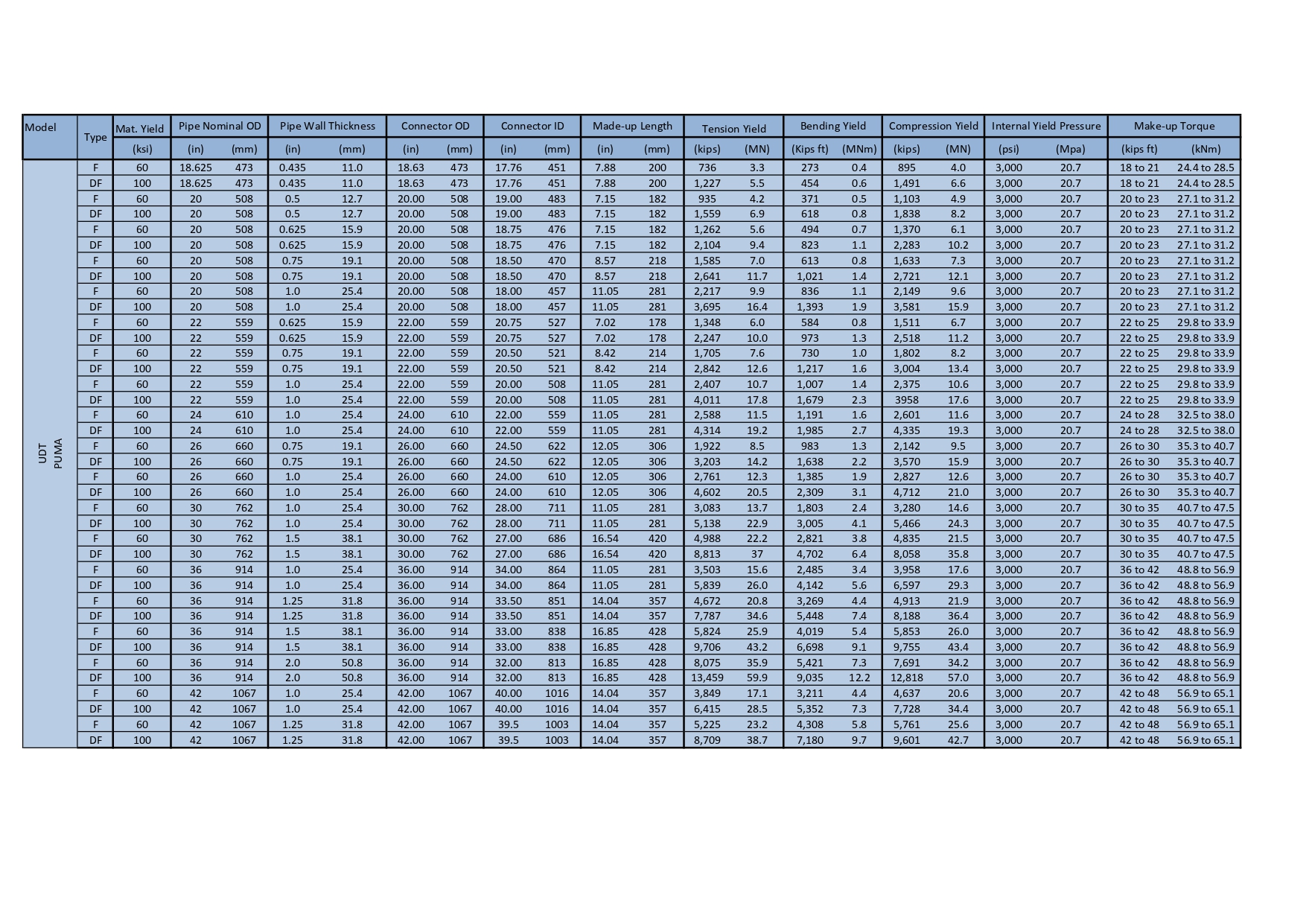

DATA TABLE

SUPERIOR PERFORMANCE CONNECTORS

We provide top-quality easy to operate connectors for a safe, reliable, and productive drilling experience.

Other Fast Make Up High PErformance Connectors
