Casing Pipe With Connector Joint

CASING PIPE WITH CONNECTOR JOINT

We can supply the OD sizes 18.625” to 40” and Covering the full range of pipe wall thicknesses.

Casing pipes can be supplied with both Product Specification Level (PSL-1 & PSL-2).

We can supply finished connector joints in a variety of forms to meet any requirement and industry standards, including standard joints (API Range 3)

  • Pup joints,
  • Extended joints (>12mtr),
  • Cross-over joints, extension joints (up to 18mtr),
  • Float shoe & float collar joints,
  • Joints with lifting pad-eyes and more.

FABRICATION OF CONNECTOR TO CASING JOINTS

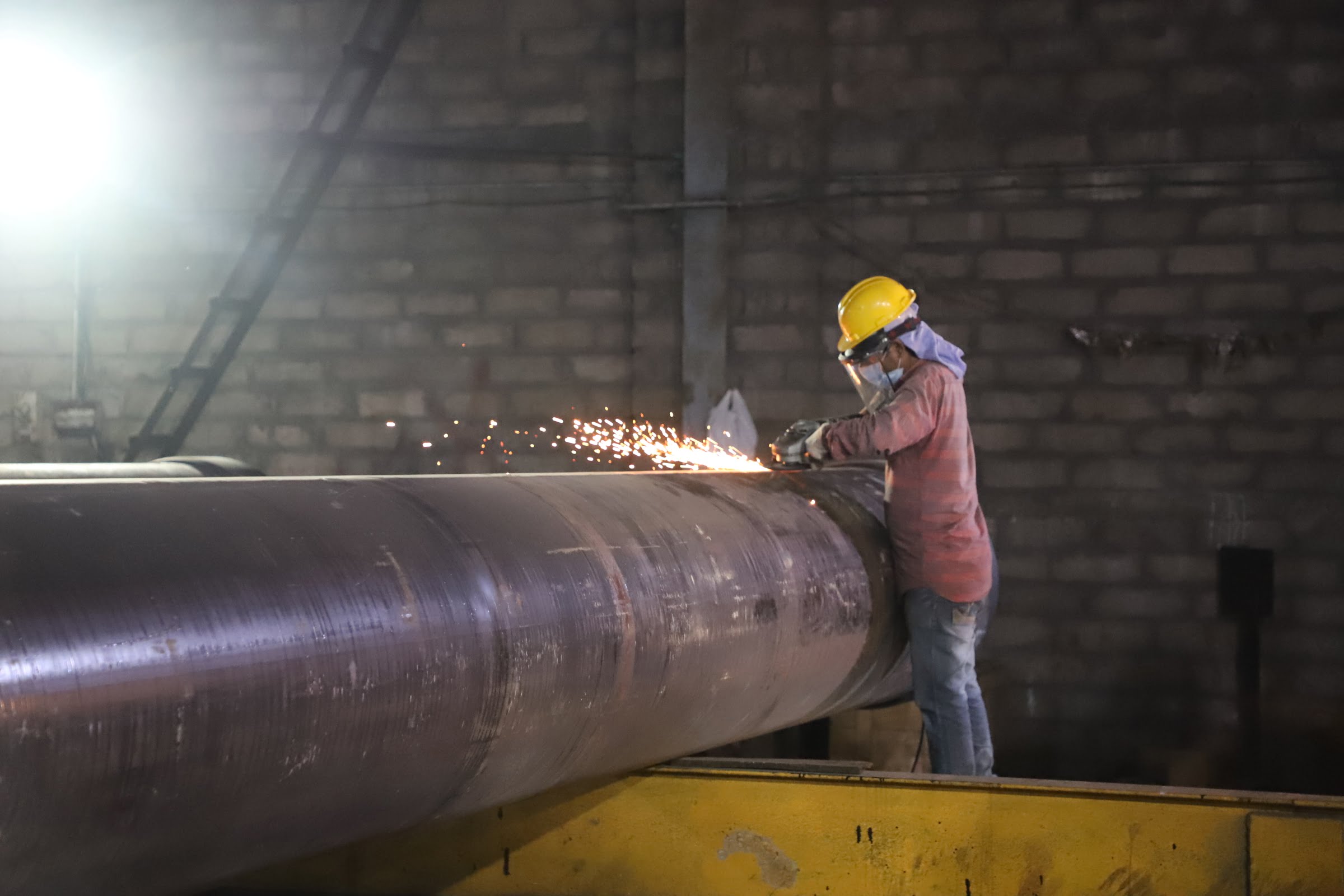

CASING PIPE ASSEMBLY AND  WELDING

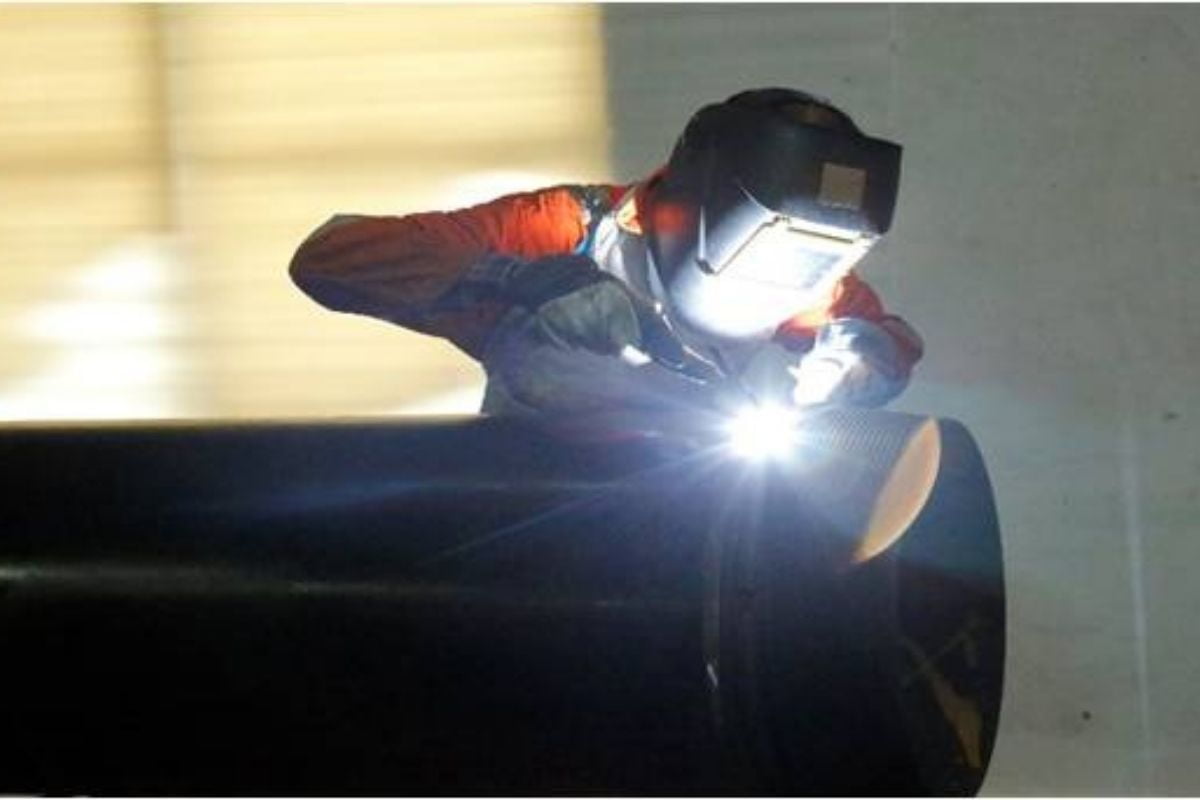

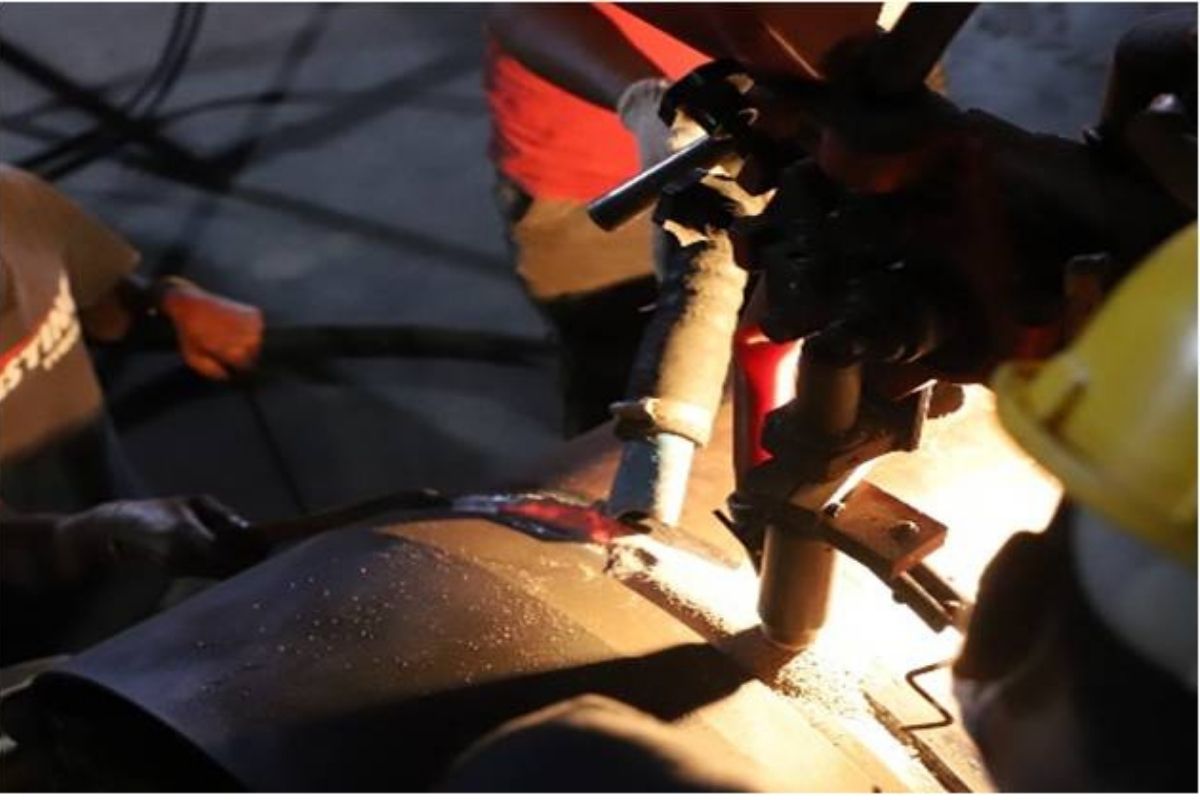

  • We use state of art welding facility with SAW, TIG & MIG welding in conformity with API 1104/API-RP-5C6

  • Fit-up of the connector to the pipe is done through alignment tolerance, group of clearance, perpendicularity and straightness.

  • The weld cap on the girth weld and long seam weld height is gauged to suit API elevator dimensions

QUALITY INSPECTION

  • To ensure all relevant manufacturing and fabrication inspection criteria , UDT follows a manufacturing quality test plan (QTP),

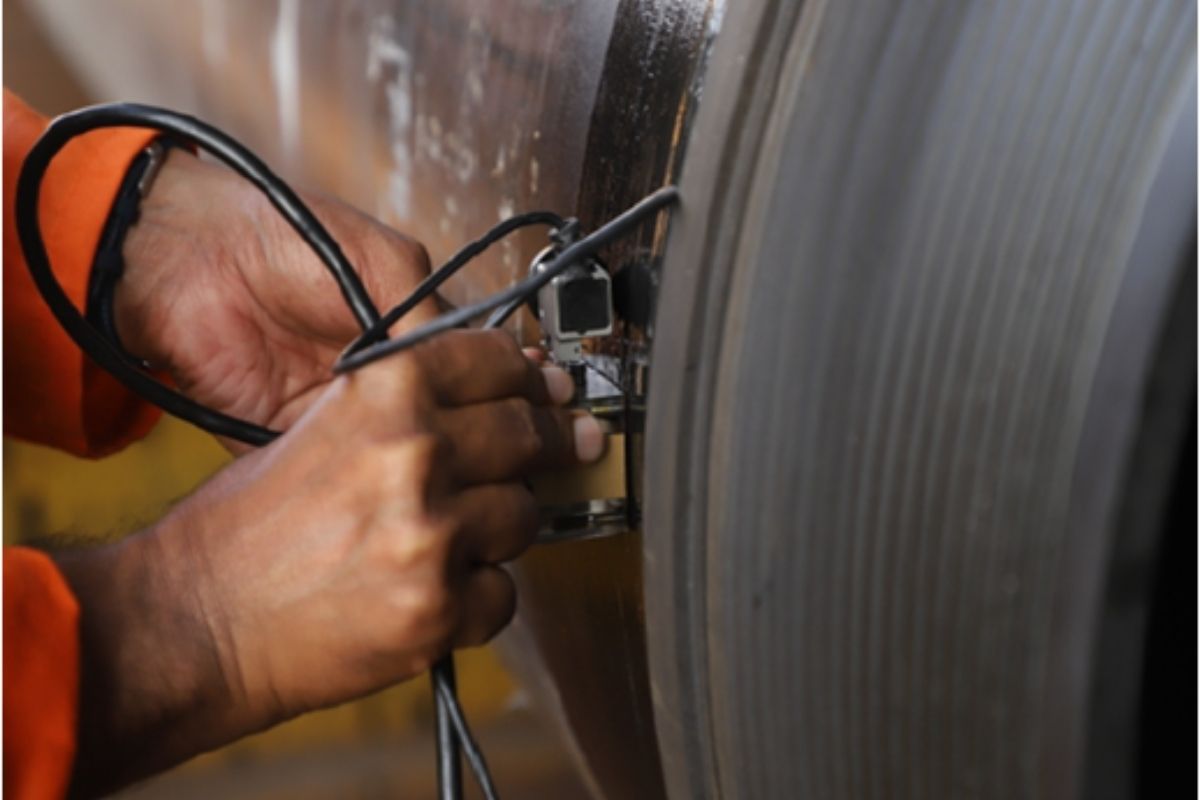

  • All welds are inspected by phased array and/or radiographic testing as per the industry standards.

  • The inspection procedures used by UDT conform to API Spec.1104 & API -RP-5C6.

TRACEABILITY

  • Data sheets are prepared for each casing joint, which includes material certification and records details of all tests and inspection conducted as per the QTP.
  • Each data sheet is linked to and identifies each component by a unique serial number, which provides 100% material traceability

FAST TURNAROUND

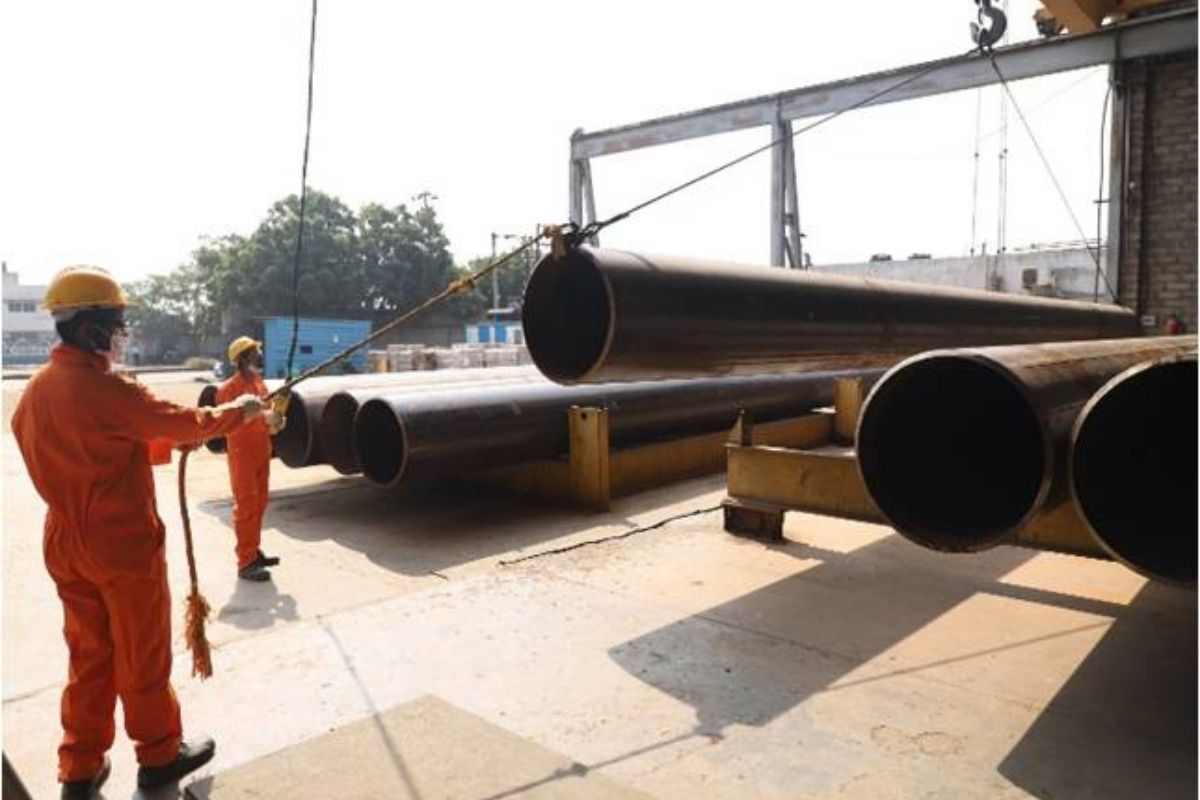

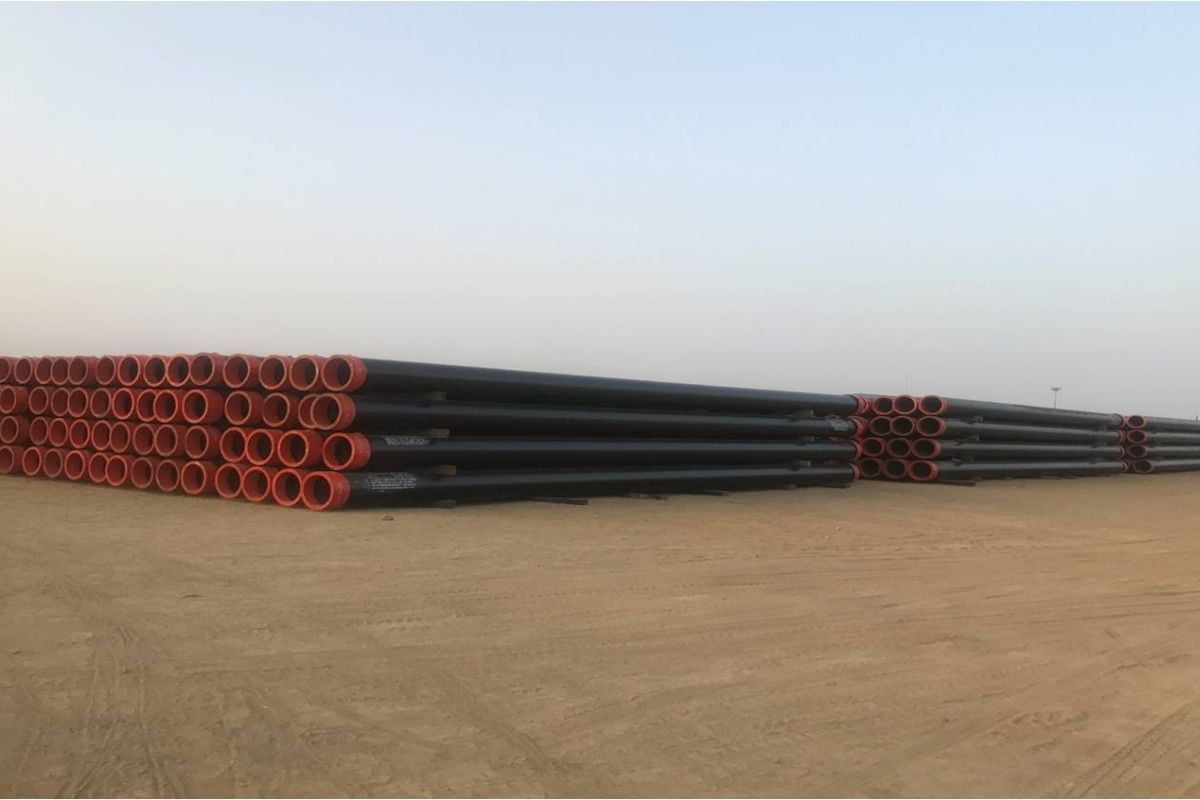

  • UDT prides itself on its short lead-time delivery capabilities and carries an inventory of connectors, raw material forgings and a selection of pipe (common sizes) to offer expedited deliveries.
  • UDT provide a number of incentives including stocking and maintenance agreements and expediting programs to provide the client with the flexibility to meet tight delivery schedules.

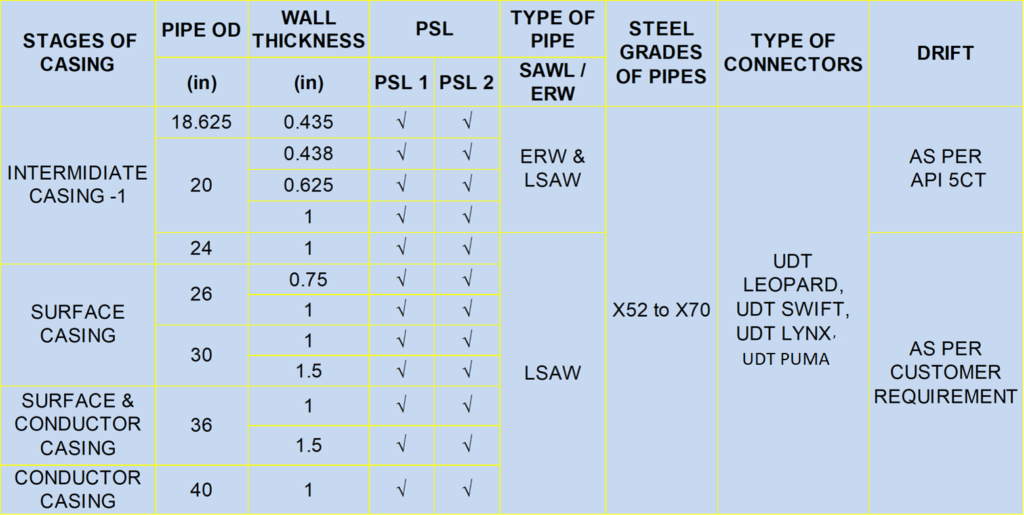

UDT supplies casing pipe with connector joints in following sizes

All types of UDT connectors : UDT Leopard, UDT Swift, UDT Lynx & UDT Puma can be welded & procured with these pipes

CASING PIPE WITH CONNECTOR JOINT

We provide top-quality easy to operate CASING PIPE WITH CONNECTOR JOINT for a safe, reliable, and productive drilling experience.
